WEEK 5 - METAL BLISTER MAKING

INTRODUCTION

This week, we used a hollow abrasive tool to strike out the middle part of the aluminum sheet in a concave blister shape.

The image shows the final work I have been done in this week.


Bottom view


Top view

n the following content, I will show all the steps that how to make the aluminum sheet become a blister.

STEP 1

Firstly, cut the aluminum sheet into a square that will be smaller than the square formed by the four screws on the abrasive tool. Then place the aluminum sheet in the middle of two identical abrasive tools, and fix the abrasive tool with screws so that the aluminum sheet cannot be moved in the abrasive tool.


Place the aluminum sheet in the middle of two identical abrasive tools


Cut the aluminum sheet into a square

STEP 2

First, use a metal hammer to strike the middle of the aluminum sheet. By continuous tapping, the entire middle part becomes an arc.


Use a metal hammer to strike the middle of the aluminum sheet


Use a metal hammer to strike the middle of the aluminum sheet (Analysis)

STEP 3

Use the sleek side of the metal hammer to strike the concave part of the aluminum sheet to make it smoother.


Strike the concave part of the aluminum sheet to make it smoother

Strike the concave part of the aluminum sheet to make it smoother (Analysis)

STEP 4

Use a pre-designed pointed stick to make the edge of the concave shape more prominent by hammering with a hammer.


Use a pre-designed pointed stick


Use a pre-designed pointed stick (Analysis)

STEP 5

Use a big hammer to strike a small hammer to make a partial stroke, making the entire concave part more slick, which the big hammer cannot touch the part near the edge.


Use a big hammer to strike a small hammer to make a partial stroke


Use a big hammer to strike a small hammer to make a partial stroke (Analysis)

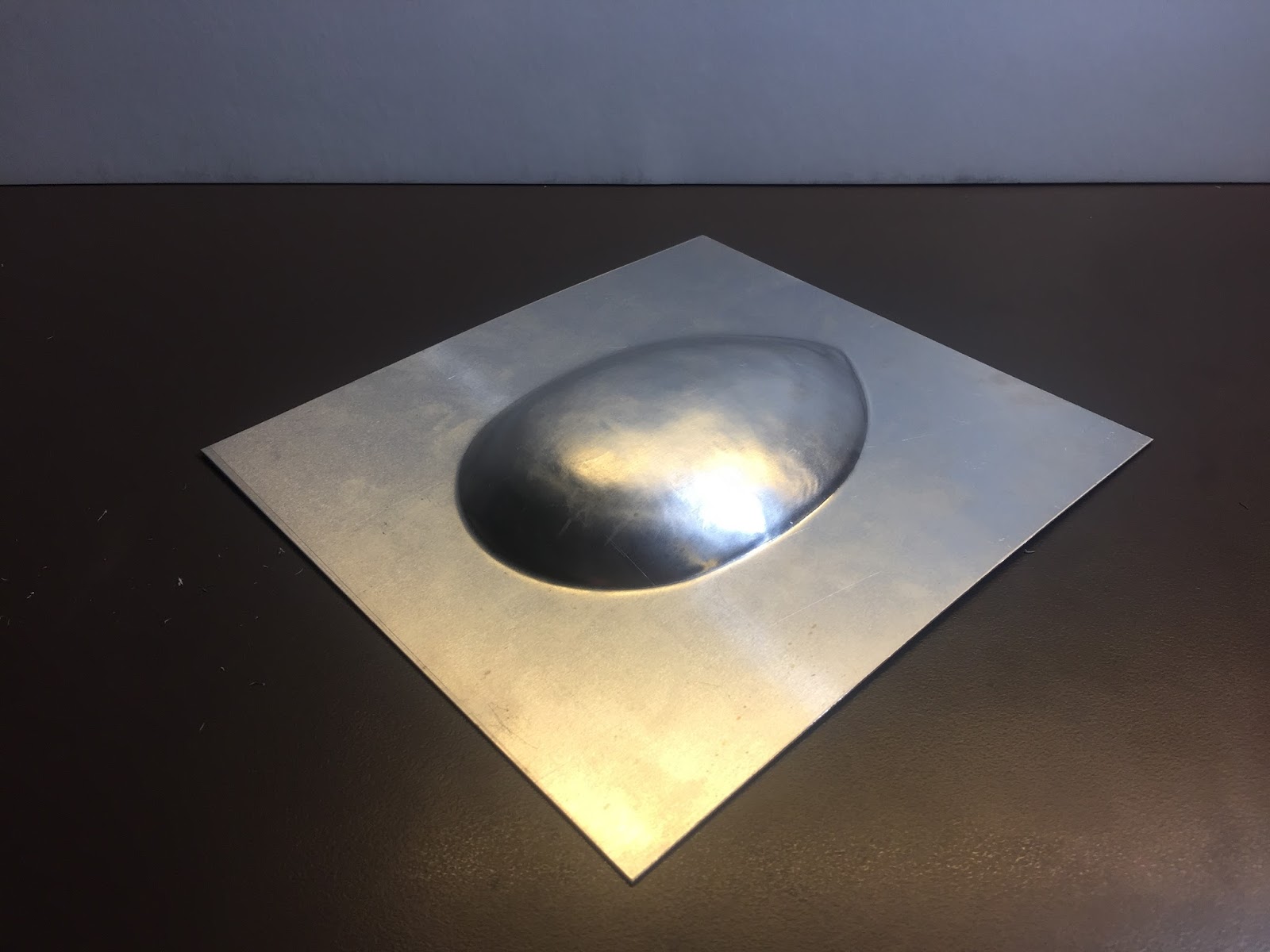

The final object will be the perfect blister


Top view


Bottom view


Top view


Bottom view


Side view


Side view
